MBシリーズ
マルチライトバー型
製品詳細
シマテックのMRシリーズの代替品に。

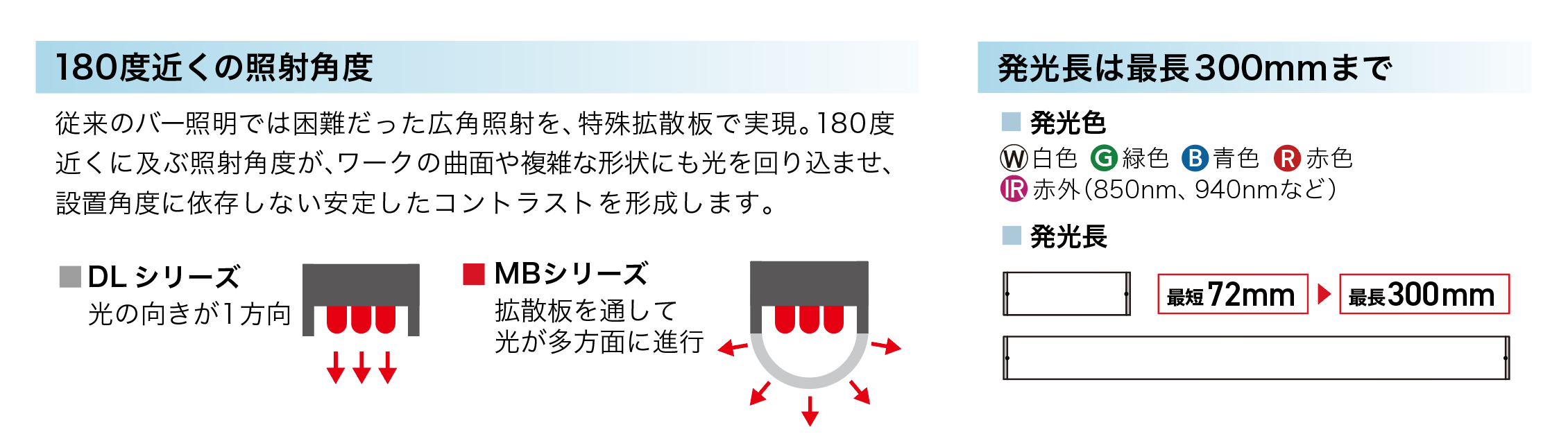

約180度に及ぶ照射角度が特徴のマルチライトシリーズにバー型が新登場。

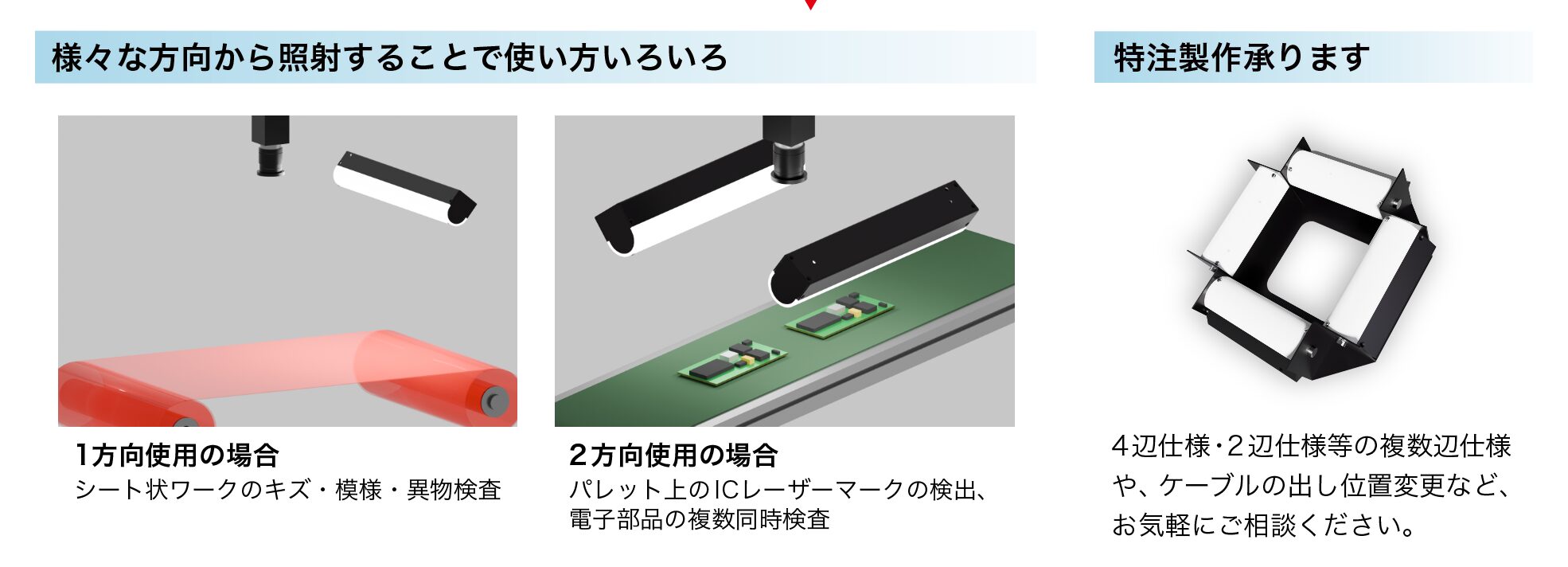

設置角度に依存しない安定したコントラストを形成します。
●シマテック製品：MRシリーズの置き換えに
●発光長は最短72mm〜300mmまでラインナップ
●約180度に及ぶ超広角照射
- DC24V製品製作可(赤色・赤外はDC12V製品のみ)
- 赤外LED可
- 白色LED
- DC12V
- DC24V
- 青色LED
- 緑色LED
- 赤色LED
- 赤外線LED
仕様
| 型式 | 発光色 | 発光面 | 入力電圧 | 消費電力 | DXF | |
|---|---|---|---|---|---|---|
| WMB-5027 | 白色LED | 50×27mm | DC12V | 3.6W | DXF | |
| WMB-5027-24V | 白色LED | 50×27mm | DC24V | 3.6W | DXF | |
| BMB-5027 | 青色LED | 50×27mm | DC12V | 3.6W | DXF | |
| BMB-5027-24V | 青色LED | 50×27mm | DC24V | 3.6W | DXF | |
| GMB-5027 | 緑色LED | 50×27mm | DC12V | 3.6W | DXF | |
| GMB-5027-24V | 緑色LED | 50×27mm | DC24V | 3.6W | DXF | |
| RMB-5027-850 | 赤色LED | 50×27mm | DC12V | 2.9W | DXF | |
| IRMB-5027-850 | 赤外線LED | 50×27mm | DC12V | 2.9W | DXF | |
| IRMB-5027-940 | 赤外線LED | 50×27mm | DC12V | 2.9W | DXF | |
| WMB-7227 | 白色LED | 72×27mm | DC12V | 5.8W | DXF | |
| WMB-7227-24V | 白色LED | 72×27mm | DC24V | 5.8W | DXF | |
| BMB-7227 | 青色LED | 72×27mm | DC12V | 5.8W | DXF | |
| BMB-7227-24V | 青色LED | 72×27mm | DC24V | 5.8W | DXF | |
| GMB-7227 | 緑色LED | 72×27mm | DC12V | 5.8W | DXF | |
| GMB-7227-24V | 緑色LED | 72×27mm | DC24V | 5.8W | DXF | |
| RMB-7227 | 赤色LED | 72×27mm | DC12V | 4.4W | DXF | |
| IRMB-7227-850 | 赤外線LED | 72×27mm | DC12V | 4.4W | DXF | |
| IRMB-7227-940 | 赤外線LED | 72×27mm | DC12V | 4.4W | DXF | |
| WMB-10027 | 白色LED | 100×27mm | DC12V | 7.7W | DXF | |
| WMB-10027-24V | 白色LED | 100×27mm | DC24V | 7.7W | DXF | |
| BMB-10027 | 青色LED | 100×27mm | DC12V | 7.7W | DXF | |
| BMB-10027-24V | 青色LED | 100×27mm | DC24V | 7.7W | DXF | |
| GMB-10027 | 緑色LED | 100×27mm | DC12V | 7.7W | DXF | |
| GMB-10027-24V | 緑色LED | 100×27mm | DC24V | 7.7W | DXF | |
| RMB-10027 | 赤色LED | 100×27mm | DC12V | 5.8W | DXF | |
| IRMB-10027-850 | 赤外線LED | 100×27mm | DC12V | 5.8W | DXF | |
| IRMB-10027-940 | 赤外線LED | 100×27mm | DC12V | 5.8W | DXF | |
| WMB-14627 | 白色LED | 146×27mm | DC12V | 11.3W | DXF | |
| WMB-14627-24V | 白色LED | 146×27mm | DC24V | 11.3W | DXF | |
| BMB-14627 | 青色LED | 146×27mm | DC12V | 11.3W | DXF | |
| BMB-14627-24V | 青色LED | 146×27mm | DC24V | 11.3W | DXF | |
| GMB-14627 | 緑色LED | 146×27mm | DC12V | 11.3W | DXF | |
| GMB-14627-24V | 緑色LED | 146×27mm | DC24V | 11.3W | DXF | |
| RMB-14627 | 赤色LED | 146×27mm | DC12V | 8.7W | DXF | |
| IRMB-14627-850 | 赤外線LED | 146×27mm | DC12V | 8.7W | DXF | |
| IRMB-14627-940 | 赤外線LED | 146×27mm | DC12V | 8.7W | DXF | |
| WMB-20027 | 白色LED | 200×27mm | DC12V | 14.4W | DXF | |
| WMB-20027-24V | 白色LED | 200×27mm | DC24V | 14.4W | DXF | |
| BMB-20027 | 青色LED | 200×27mm | DC12V | 14.4W | DXF | |
| BMB-20027-24V | 青色LED | 200×27mm | DC24V | 14.4W | DXF | |
| GMB-20027 | 緑色LED | 200×27mm | DC12V | 14.4W | DXF | |
| GMB-20027-24V | 緑色LED | 200×27mm | DC24V | 14.4W | DXF | |
| RMB-20027 | 赤色LED | 200×27mm | DC12V | 8.4W | DXF | |
| IRMB-20027-850 | 赤外線LED | 200×27mm | DC12V | 8.4W | DXF | |
| IRMB-20027-940 | 赤外線LED | 200×27mm | DC12V | 8.4W | DXF | |
| WMB-24027 | 白色LED | 240×27mm | DC12V | 19.2W | DXF | |
| WMB-24027-24V | 白色LED | 240×27mm | DC24V | 19.2W | DXF | |
| BMB-24027 | 青色LED | 240×27mm | DC12V | 19.2W | DXF | |
| BMB-24027-24V | 青色LED | 240×27mm | DC24V | 19.2W | DXF | |
| GMB-24027 | 緑色LED | 240×27mm | DC12V | 19.2W | DXF | |
| GMB-24027-24V | 緑色LED | 240×27mm | DC24V | 19.2W | DXF | |
| RMB-24027 | 赤色LED | 240×27mm | DC12V | 9.6W | DXF | |
| IRMB-24027-850 | 赤外線LED | 240×27mm | DC12V | 9.6W | DXF | |
| IRMB-24027-940 | 赤外線LED | 240×27mm | DC12V | 9.6W | DXF | |
| WMB-30027 | 白色LED | 300×27mm | DC12V | 25.2W | DXF | |
| WMB-30027-24V | 白色LED | 300×27mm | DC24V | 25.2W | DXF | |
| BMB-30027 | 青色LED | 300×27mm | DC12V | 25.2W | DXF | |
| BMB-30027-24V | 青色LED | 300×27mm | DC24V | 25.2W | DXF | |
| GMB-30027 | 緑色LED | 300×27mm | DC12V | 25.2W | DXF | |
| GMB-30027-24V | 緑色LED | 300×27mm | DC24V | 25.2W | DXF | |
| RMB-30027 | 赤色LED | 300×27mm | DC12V | 12.6W | DXF | |
| IRMB-30027-850 | 赤外線LED | 300×27mm | DC12V | 12.6W | DXF | |
| IRMB-30027-940 | 赤外線LED | 300×27mm | DC12V | 12.6W | DXF |
